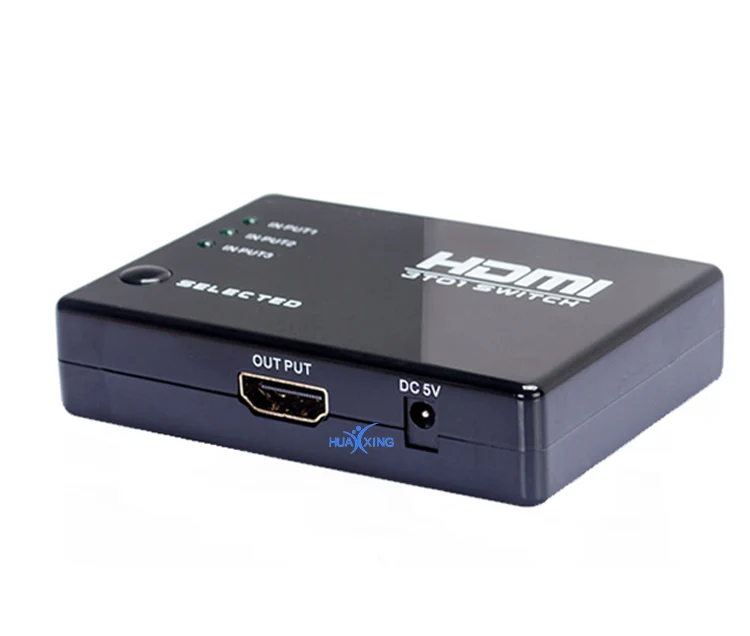

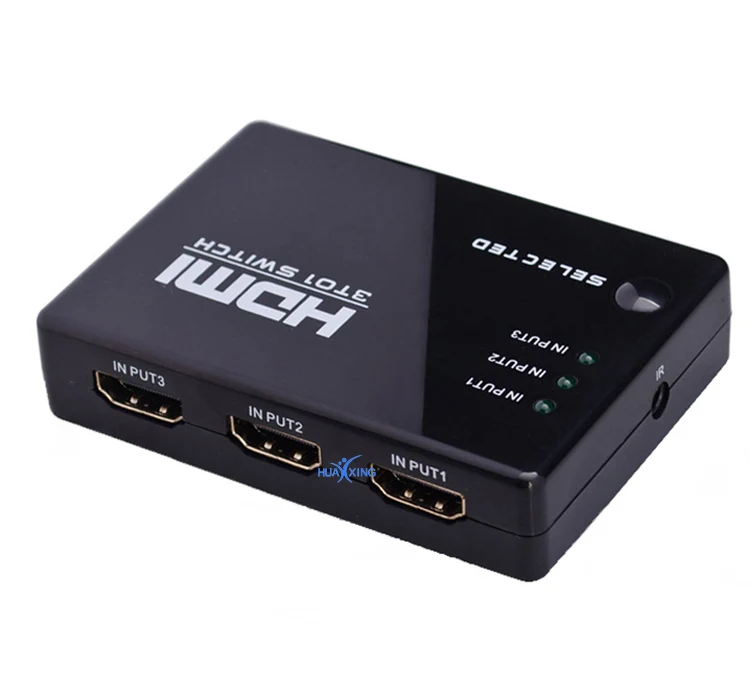

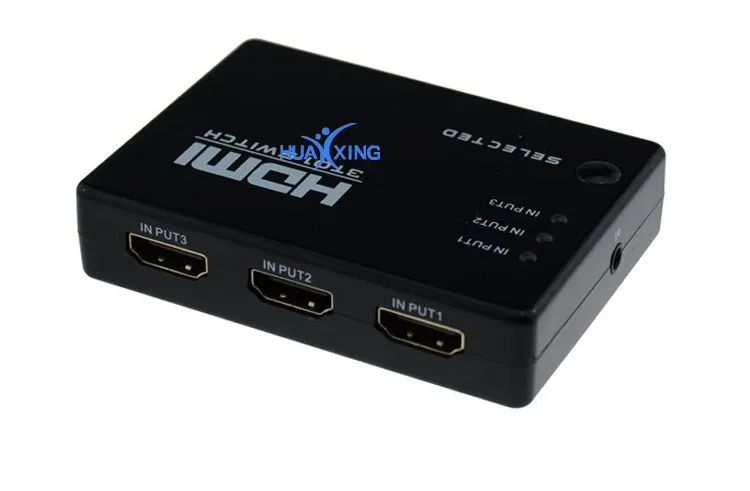

Mini 4k HDMI Switch 3 Port with Audio Extractor for DVD HDTV 1080P

FOB Reference Price:Get Latest Price
$1.00 - $5.60 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Huaxing
Model Number:
HX301
Place of Origin:
Guangdong, China
Player Type:
DVD Player
bandwidth:
250Mhz/2.5 Gbps per channel
Compatible with:
3D/1080P/HDCPHDMI High Speed, Full HD 3D, HDCP 1.2
Input:
3 HDMI Input
Output::
1 HDMI Output
Brandwidth:
2.5Gbps/250MHz
Function:
3 hdmi input switches 1 hdmi output
support:
1080p resolution
housing:
plastic
warranty:
12 months
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
color box
Port
Shenzhen
Lead Time :
Shipped in 2 days after payment
  Mini 4k HDMI Switch 3 Port with Audio Extractor for DVD HDTV 1080P







 This is akind of high performance mini HDMI Switcher. It is compatiable well for HD-DVD,, STV,  etc. The multiple resolutions can be up to 1080p. This kind of HDMI Amplifier Switcher not only has key-press-switching function, but also has IR remote contol and interlligent function. That is to say, as soon as power supply of the source equipment is switched, this switcher will respond automatically. Standardly equipped with infrared-ray receiver extender.




Signal Inputs/Output



Input DDC Signal

5 volts p-p (TTL)

Maximum Single Link Range

1920X1080p

Output Video

HDMI

Operating Frequency



Vertical Frequency Range

50/60Hz

Video Amplifier Bandwidth

2.5Gbps/250MHz

Resolutions(HDTV)



Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Mechanical



Size(L-W-H)

80×58×18mm

Weight(Net)

55g

Warranty



Limited Warranty

1 Year Parts and Labor

Environmental



Operating Temperature

0 °C to +70°C

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10°C to +80°C

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement



External Power Supply

No power needed for standard product

Power consu

mption (Max)

5W



This MiNi HDMI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:



Multifunctional on switching : intelligent or mechanical



IR extender receiver (included)



IR remote(included)



Supports highest video resolution 1080p.



Supports 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.



Supports 12bit per channel (36bit all channel) deep color.



HDCP pass-through.



Supports uncompressed audio such as LPCM.



Supports compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby  True HD).



Support 3D all format, including 1080p(23.98/24Hz), 720p(59.94/60Hz/50Hz), bandwidth up to 250MHz.



Support HDMI 1.3b


Full HD 1080P


Support 12-bit deep color


High Performance up to 2.5Gbps


Supports 25m HDMI cable on both ends of the switcher


No need for power (power supply is optional; if the input equipment is not standard, power needed)


HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
